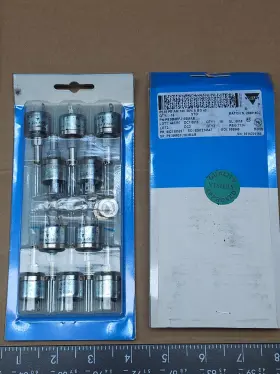

PE30MEFJ103MAB VISHAY Cermet Potentiometer

Review VISHAY Piece 10kohms 3w Cermet Potentiometer

The Vishay PE30MEFJ103MAB 10kOhms 3W Cermet Potentiometer is a high-performance, manually adjustable resistive element designed for various industrial and electronic applications. This potentiometer, manufactured by Vishay Precision Group, is a part of their extensive range of resistive products.

The PE30MEFJ103MAB features a 10kOhms nominal resistance value with a 3W power rating, making it suitable for applications that demand medium power handling capabilities. Its resistance value is measured between the center wiper and each end terminal. The potentiometer's resistance tolerance is specified as /- 5%, ensuring reliable and consistent performance.

This 3-terminal potentiometer boasts a robust design, with a ceramic body that offers excellent thermal stability and resistance to vibrations and shocks. The wiper is made of beryllium copper for superior conductivity and durability, ensuring consistent and stable resistance adjustment over time. The terminals are gold-plated to ensure good electrical contact and to prevent corrosion.

The PE30MEFJ103MAB is available in various shaft and mounting configurations, including linear and rotary shafts, and flange, panel, and SMD mounts. This versatility makes it an ideal component for a wide range of applications in various industries, including automotive, military, telecommunications, test and measurement, and more.

Additionally, this Vishay potentiometer provides excellent temperature stability, with a TCR (Temperature Coefficient of Resistance) of 220ppm/ C. It can operate in a temperature range of -40 C to 85 C, ensuring its functionality in various environments.

With its high power rating, excellent thermal stability, and robust design, the Vishay PE30MEFJ103MAB 10kOhms 3W Cermet Potentiometer is a reliable and versatile component for applications that require precise resistance adjustment and medium power handling capabilities.

A Detailed Analysis of the Vishay PE30MEFJ103MAB 10kOhms 3w Cermet Potentiometer

The Vishay PE30MEFJ103MAB is a 10kOhms, 3w Cermet (Ceramic-Composition) Potentiometer. This type of potentiometer is widely used in various electronic applications due to its high power handling capacity and stability. In this analysis, we will discuss the pros and cons of using this specific potentiometer, followed by a conclusion and recommendation.

1. High Power Handling: With a power rating of 3 watts, the Vishay PE30MEFJ103MAB can handle higher power applications compared to other types of potentiometers.

2. Stability: Cermet potentiometers are known for their excellent stability, making them suitable for applications where precise voltage control is required.

3. Temperature Stability: Cermet potentiometers have low temperature coefficients, ensuring minimal resistance changes with temperature variations.

4. Wide Operating Temperature Range: The operating temperature range of this potentiometer is from -25 C to 125 C, making it suitable for use in various environments.

1. Cost: Cermet potentiometers are generally more expensive than other types, such as Carbon or Film potentiometers, due to their higher power handling capacity and stability.

2. Size: The Vishay PE30MEFJ103MAB has a larger size compared to other potentiometers with similar resistance values, which may pose challenges in space-constrained applications.

The Vishay PE30MEFJ103MAB 10kOhms 3w Cermet Potentiometer offers several advantages, including high power handling, stability, and temperature stability, making it an excellent choice for applications that require precise voltage control and can accommodate its larger size and higher cost.

If your application requires a potentiometer with high power handling, stability, and temperature stability, and you have the required space and budget, the Vishay PE30MEFJ103MAB 10kOhms 3w Cermet Potentiometer is a solid choice. Alternatively, if your application does not demand such high specifications, consider cheaper options like Carbon or Film potentiometers.

Details:

Manufactured by Vishay, this potentiometer is designed for precise control of electrical resistance in various electronic circuits. With its high quality and reliability, this component is essential for maintaining accurate consistent performance in a wide range of electrical equipment industrial applications. Number of turns: 1.0. Number of gangs: 1.

Manufacturer: Vishay. Power watts : 3w. Size - body: round 0.776 DOA 19.70mm.

specifications passivecompos:

• brand: Vishay
• mpn: Pe30mefj103mab

general passivecompos:

• category: Business & Industrial > Passive Components > Variable Resistors > Potentiometers

shipping passivecompos:

• carrier: usps
• class: expedited
• service: usps priority mail small flat rate box
• transit: 3-7 days
• type: fixed

seller passivecompos:

• rating: 99.5%
• city: trevor, wisconsin
• # reviews: 5034

payments passivecompos:

• wallet: paypal
• other
• credit card: visa

returns passivecompos:

• time: 30 days
• method: money back
• paid by: buyer
• policy: returns accepted

offer passivecompos:

• availability: in stock
• best offers: true
• sold #: 23
• price: $27.75
• item condition: New
• options: ship-to-home
• started: august 11, 2025
