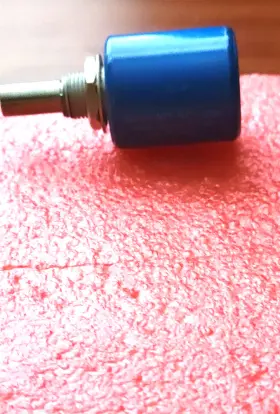

3500S-S-204 BOURNS Potentiometer Turn Linear Taper

Review BOURNS Potentiometer 200k Watt Turn Linear Taper Free Ship Usa

The Bourns 3500S-S-204 3500S-2-204 potentiometer is a high-performance, 200k ohm, 10-turn linear taper potentiometer designed for applications that require precise voltage division or current control. This potentiometer is manufactured by Bourns, a leading supplier of electronic components with a reputation for quality and reliability.

This 1/4 inch diameter, shafted potentiometer features a linear taper design, which means the resistance changes evenly and linearly as the shaft is rotated. It has a total resistance of 200,000 ohms, making it suitable for voltage dividers and current control circuits requiring a relatively high resistance value. The 10-turn design provides a greater resistance range and finer adjustment capabilities, making it ideal for applications that require high precision and accuracy.

The Bourns 3500S-S-204 potentiometer is constructed using a carbon composition material, which offers excellent stability, low temperature coefficient, and good power handling capabilities. The potentiometer has a maximum power rating of 2 watts and can handle up to 0.5 watt at the terminals. It also features a rotary actuator with a knob for easy adjustment and a shaft length of 3/8 inch.

This potentiometer is RoHS compliant, meaning it contains no lead or other hazardous materials. It also meets the requirements of UL and CSA standards, ensuring that it meets the highest safety and quality standards. The potentiometer is available in an epoxy sealed version (3500S-EP-204) for additional protection against moisture and other environmental factors.

In summary, the Bourns 3500S-S-204 3500S-2-204 potentiometer is a high-performance, 200k ohm, 10-turn linear taper potentiometer designed for applications that require precise voltage division or current control. It features a linear taper design, carbon composition material, and a maximum power rating of 2 watts. It is RoHS compliant, UL and CSA certified, and available in an epoxy sealed version for added protection.

The Bourns 3500S-S-204 3500S-2-204 potentiometer is a 200k ohm, 10-turn linear taper potentiometer. Here are some pros and cons that may help you in deciding whether to purchase this component.

1. Linear Taper: This potentiometer has a linear taper, which means that the resistance changes linearly with the rotation of the shaft. This makes it ideal for applications where a consistent resistance change is required.

2. 10-Turn: With 10 turns, this potentiometer provides a greater resistance range than a typical single-turn potentiometer. This can be useful in applications where a finer resistance adjustment is required.

3. 200k Ohm: The 200k ohm resistance value is a common value used in various electronic circuits.

4. Reliable: Bourns is a well-known manufacturer of potentiometers and other electronic components. Their components are known for their reliability and durability.

1. Cost: This potentiometer may be more expensive than some other options due to its higher resistance value and greater number of turns.

2. Size: With a diameter of approximately 1 inch and a length of approximately 3 inches, this potentiometer may take up more space on a PCB than some other options.

3. Manual Adjustment: Since this is a potentiometer, any resistance adjustments must be made manually. This may not be ideal for applications where automatic adjustments are required.

The Bourns 3500S-S-204 3500S-2-204 potentiometer is a reliable and precise component that is well-suited for applications where a consistent resistance change is required and a finer adjustment is necessary. Its higher cost and larger size may be drawbacks for some applications, but for those where its unique features are required, it is a worthy investment.

If you are looking for a high-precision, manually adjustable potentiometer with a linear taper and a resistance range greater than what a typical single-turn potentiometer can offer, then the Bourns 3500S-S-204 3500S-2-204 potentiometer is a strong consideration. However, if size and cost are major concerns, you may want to consider other options.

Details:

Linear taper.813 actuator length . Bourns 3500S-2-204 200k - 2 watt 10 turns linear taper wirewound solder lugs .813 actuator length .249 DOA 3/8 -32 bushing new free shipping usa.

specifications passivecompos:

• brand: Bourns
• mpn: 3500s-s-204
• mounting style: Panel Mount
• power rating: 2 W
• type: Wirewound
• termination style: Solder Lug
• maximum operating temperature: 125 C
• resistance rating: 200k
• number of turns: 10
• country of origin: Mexico
